Juice Processing Equipment Bottle Blowing Machine For Round Plastic Bottle

Place of Origin : china

MOQ : 1 set

Price : Negotiation

Delivery Time : 30 working days

Packaging Details : Plywood case exporting standard

product name : Bottle Blowing Machine

use : Water

Control : PLC Control

speed : 1600-1800BPH

Plastic Processed : PET

Automation : Semi - automatic

Contact Now

Juice Processing Equipment Bottle Blowing Machine For Round Plastic Bottle

Quick Detail:

1, Automation: Semi - automatic
2, Capacity: 800 – 1000 BPH
3, Bottle type: PET bottles
4, Auxiliary machine needed: YES

Description:

Bottle blowing machine is used to blow PET bottles from 100ml to 2L including mineral bottles, edible oil bottles, carbonated water bottles, and juice bottles and etc. The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.

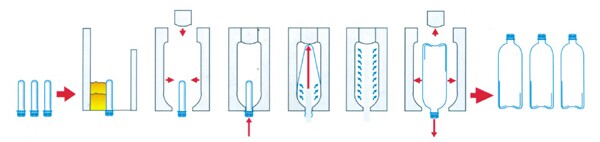

Working principle and diagram:

Technical parameter

Name	Item	Unit	Details
Blowing machine	Dimension	mm	16006001610mm
	Weight	kg	500
	Bottle volume (max)	ml	2000
	Bottle volume (min)	ml	50
	Bottle Neck Diameter (max)	mm	40
	Bottle Neck Diameter (min)	mm	18
	Body Diameter (max)	mm	125
	Body Height( max)	mm	420
	Number of Cavities	mold	2
	Production output	pcs/h	1600-1800BPH
	Clamping force	T	5.7(56KN)
	Mold thickness	mm	200(max)
	Mold width	mm	360x390
	Space between Tie-bars	mm	120-220
	Diameter of Tie-bars	mm	63
	Scope of Tie-bars	mm	405
	Mold stroke	mm	160
	Stretching stroke (max)	mm	420
	Working pressure	Mpa	0.8-1.0Mpa
	Blowing pressure	Mpa	2.0-3.0Mpa
	Voltage/Power	V/KW	220V/1KW
	Weight	Kg	500
Pre-heater	Dimension	mm	18706301450mm
	Weight	kg	260
	Voltage/Power	V/KW	380V/14KW

Competitive Advantage:

- Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
- The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
- The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
- The machine can be operated in the step-by-step mode and the semi-auto mode.
- The machine is small with low investment, easy and safe to operate .
